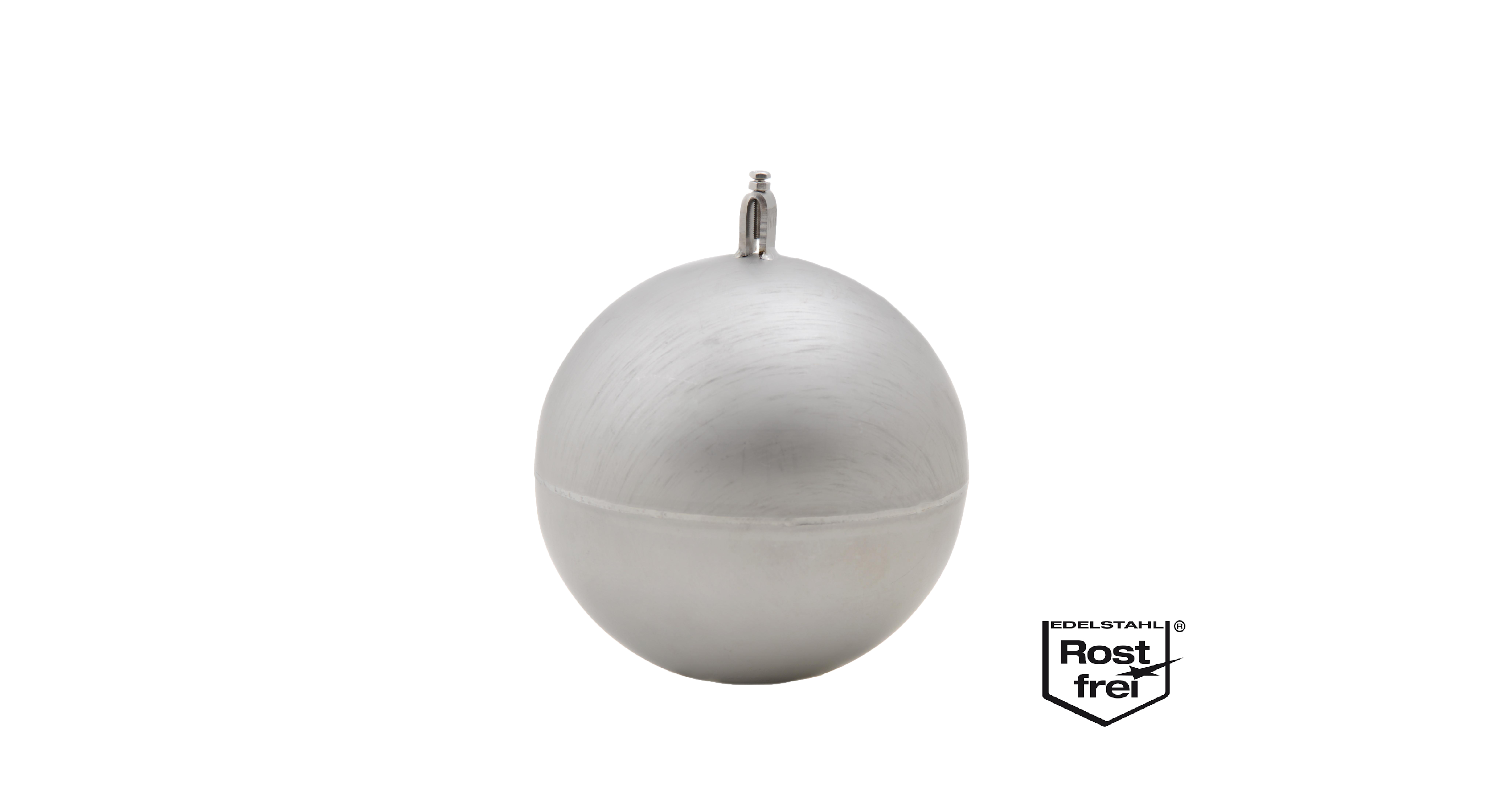

Stainless steel floater
- with flange for PEKI series
Stainless steel floats and stainless steel balls in various sizes and materials optimise the use of the PVA float valves with thread or flat rod in many applications of water level control and fresh water storage tanks.
Material | Edelstahl: V2A/V4A |
Max. Temperature | 120°C – 150°C |
Stainless steel float hollow balls - with slotted seat for flat rod of the PVA PEKI float valve series. The use of different sizes, shapes and materials optimises the use of the PVA float valves in many applications. From the space-saving compact float made of high-quality HDPE plastic to the elaborate stainless steel float like this one with individual fastening options, we can offer the right solution for almost every application.
Stainless steel floater - with flange for PEKI series | |||||||
---|---|---|---|---|---|---|---|
Model | 8-90VAB | 8-120VAB | |||||
Dimensions in mm | Ø 90 | Ø 120 | |||||
Mounting in mm (flange for float rod) | 12×4 | 12×4 | |||||
Material | 1.4301 | 1.4301 | |||||
Temperature resistance | 120° C | 120° C | |||||
Weight in g | 125 | 260 |
