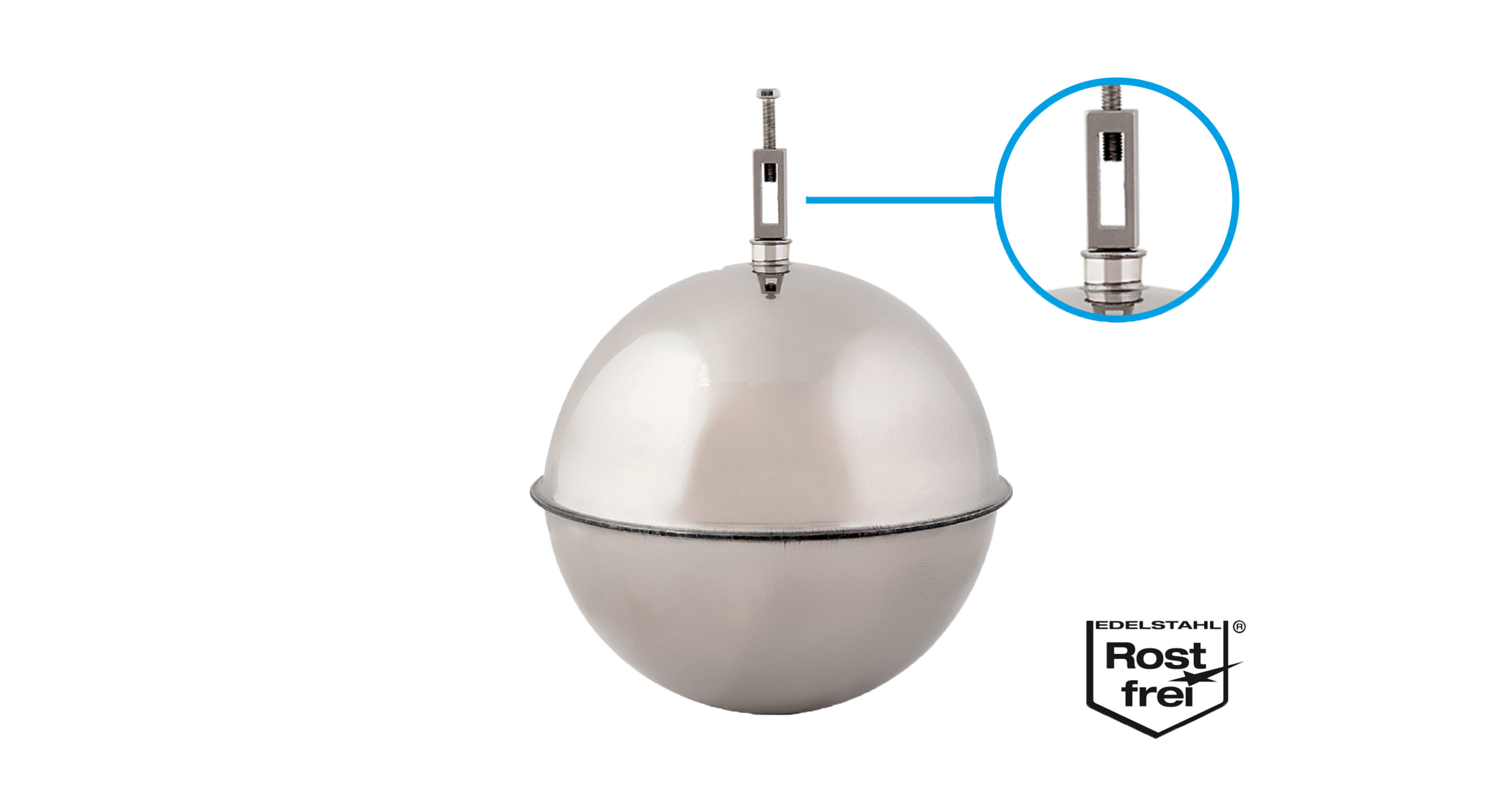

STAINLESS STEEL FLOAT WITH DUPLEX MOUNTING DRM 90 - 200MM
Stainless steel floats for level switches with variable fastening with thread and slot/long hole receptacle are applicable for industrial fittings, high temperatures, suitable for drinking water and in processing with foodstuffs.
| Material | Edelstahl: V2A/V4A |
| Max. Temperature | 120°C |
Stainless steel hollow float balls - with duplex mounting made of AISI 316 - V4A in diameters from 90 - 220mm especially in combination with the float valve series stainless steel Diamond the float for highest demands on material, quality and workmanship. The duplex mounting is innovative and allows the attachment in 2 variants. On external thread and on float rods.
| Stainless steel floater - with duplex seat 90 – 200 mm | |||||||
|---|---|---|---|---|---|---|---|
| Model | 900-90VA | 900-130VA | 900-150VA | 900-170VA | 900-200VA | ||
| Dimensions in mm | Ø 90 | Ø 110 | Ø 150 | Ø 170 | Ø 200 | ||
| Mounting in mm (female thread M8 + flange for float rod) | 22 x 6 | 22 x 6 | 22 x 6 | 22 x 6 | 22 x 6 | ||
| Material | 1.4401 | 1.4401 | 1.4401 | 1.4401 | 1.4401 | ||
| Temperature resistance | 120° C | 120° C | 120° C | 120° C | 120° C | ||
| Weight in g | 180 | 180 | 560 | 720 | 1000 | ||
